FXC Engineering accelerates the development of electrochemical processes - from research to industrial application.
flex-X-cell a modular platform for electrochemical research
Tailored experimental set-ups and equipment for your experiments.
Support in engineering components, cells and processes
flex-X-cell

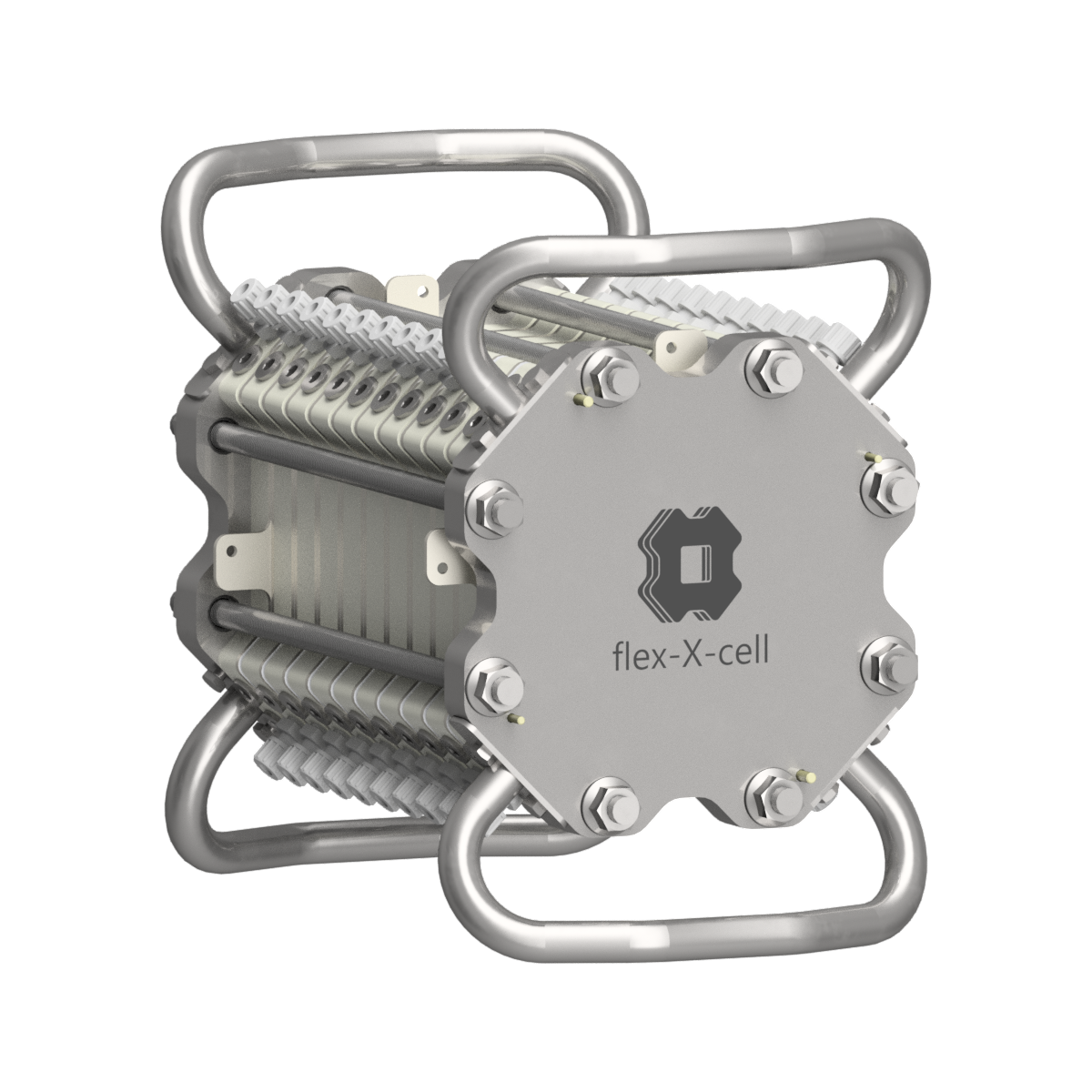

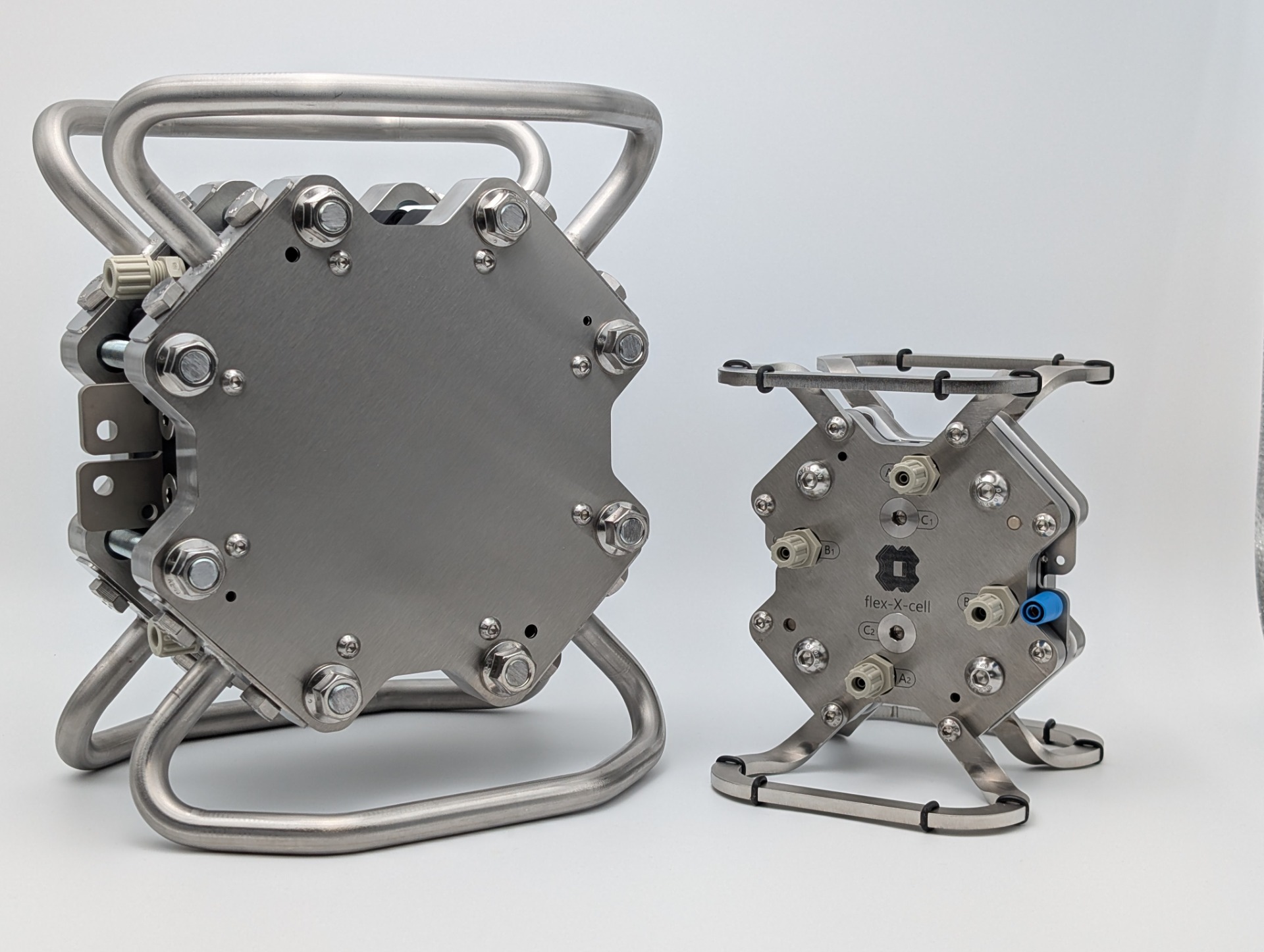

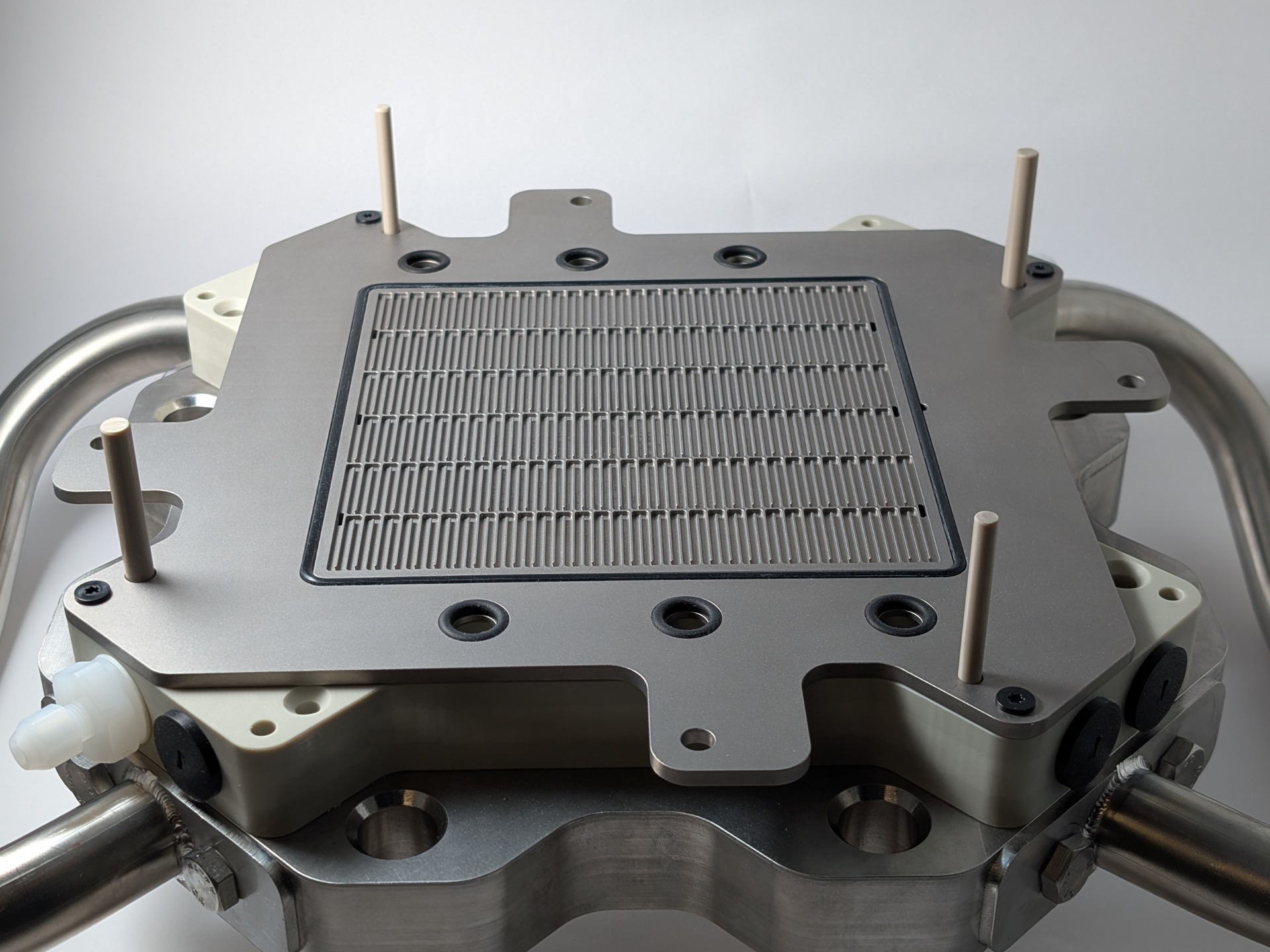

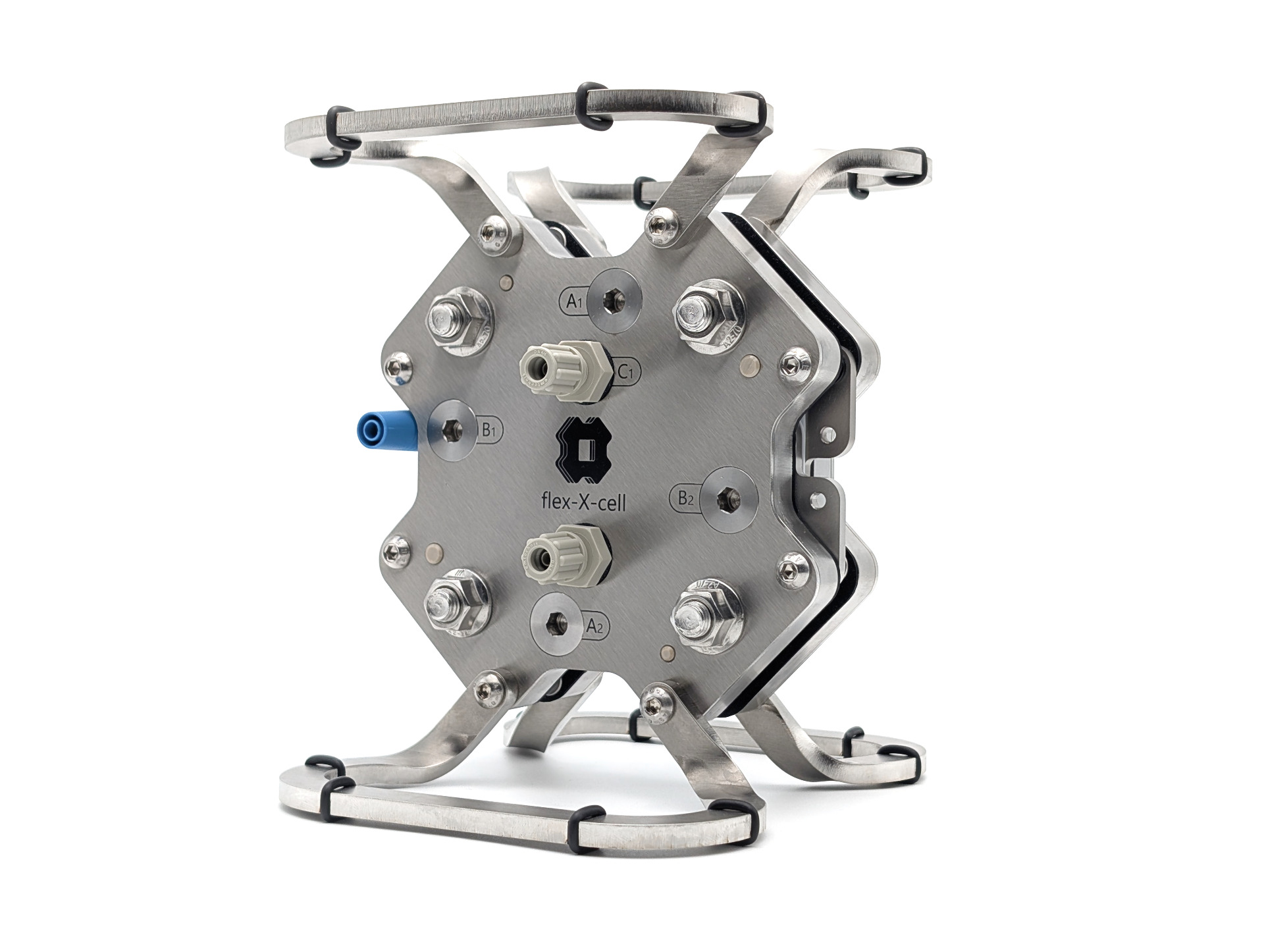

The flex-X-cell is a modular flow cell platform for
electrochemical research, process development and scale-up.
Choose from standard configurations for PEM, AEM, alkaline
electrolysis, CO₂ reduction, electrosynthesis and electrodialysis — or request a customized
solution for your application.
Active area
1 - 300
cm²
Fluid Steams
1 - 4
streams (gas/liq.)
Stack Size
1 - 20
cells
Chemical compatibility
pH
0 - 14, org. solvents
Temperature
up to
200°C
Pressure
up to 3
bar
Specifications refer to the flex-X-cell platform, device-specific limits depend on selected components and materials. Extended ranges are available on request. Chemical compatibility depends on the selected wetted materials and operating conditions.
Equipment and setups
We supply compatible experimental infrastructure for operating
flex-X-cell - from selected peripheral equipment to application-specific lab setups: flow controllers,
pumps, temperature control, reservoirs, humidification, phase separation, pH and conductivity sensors,
data logging and electrical equipment...
Engineering
Facing a specific challenge in the design, setup or operation of an
electrochemical system?
Our engineering team supports you with practical expertise — from system design and component
selection to commissioning, process optimization and troubleshooting.
Contact us to discuss
your application, technical requirements and next development steps.
Materials
We
provide selected electrodes, porous transport layers and ion-exchange membranes
for electrochemical research — including nickel felt, nickel foam, titanium
felt and coated electrodes (Pt or Ir-MMO). Materials are available in standard
dimensions or cut to size for flex-X-cell.
We cooperate closely with universities and research institutes.
Air2Chem combines direct air capture with
electrolysis to convert CO₂ from air into sustainable feedstocks for the chemical industry.
Funded through Energie.IN.NRW as part of the ERDF/JTF Programme NRW 2021–2027, implemented by the State Government of North Rhine-Westphalia.
addEchem develops additively manufactured cell components with multi-material structures and integrated functions.
Funded through Grüne Gründungen.NRW as part of the ERDF/JTF Programme NRW 2021–2027, implemented under the leadership of the Ministry for the Environment, Nature Conservation and Transport of North Rhine-Westphalia.
HyInnoAEM develops an AEM electrolyzer with integrated three-dimensional electrodes and a simplified stack architecture.
Funded through the Clusters4Future initiative as part of the SupplHyInno Rhineland hydrogen cluster by the German Federal Ministry of Research, Technology and Space.
